41 motorcraft 2150 vacuum diagram

Nov 21, 2021 · Any other questions about 2100/2150's feel free to write me Bill White ***** Good luck White Automotive -----" Motorcraft 2100 Vacuum Diagram. 75. 1967 Ford Autolite two-barrel Carb Carburetor: C7AF BR 390 eng. Order Online or Call: 800-250-8746. Ford Carb Identification: Ford Motorcraft Autolite 740 1100 2100 2150 4100 4300 4350: Full Size View 1100 1101 1250 Parts Page Diagram: Full Size View Carter 2BBL VK-CM "High Top" Carburetor (remanufactured) (Chrysler Valiant) for - Compare prices of 377984 products in Auto Parts from 198 Online Stores in Australia.

Motorcraft 2150 Manual Motorcraft 2150/2100 Carburetor Rebuild These instructions can be used on the 2100 and the 2150. for a while on a Jeep J Dec 21, 2005 · Since my Carter BBD on my '82 Cherokee (258 6 cyl, T5 manual tranny) was so sluggish on cold mornings, and it had linkage area vacuum leaks, I decided to replace it with a Motorcraft ...

Motorcraft 2150 vacuum diagram

Motorcraft 2150 vacuum diagram

More information on these carbs can be found here: The 1985-1986 Fuel System Adjustments booklet; Therangerstation.com's Motorcraft 2150/2100 Rebuild: A 47-page pdf on how to rebuild the 2100 and 2150 carbs; Bubba's M-Block Ford Workshop: 2150 theory and operation, rebuilding tips, and performance & tuning And, heretofore I've linked to a web site called The Tek At Large where quite a bit of ... I just had it overhauled, looking for vacuum hookup diagram. Auto and standard trans. Mercury 8 cylinder 1960-80 Search: Motorcraft 2 Barrel Carburetor Diagram. 125. 1000's of Original Carburetors in Stock! equipment carburetors. 6 Liter Ford Engine Diagram, image size 500 X 375 px, and to view image details please click the image. 6l 400. 85239 Answers. SOURCE: need vacuum diagram ford motorcraft. carbs don't have vacuum diagrams emission systems do, that goes by model, year, engine and whether the car is a California, 49 state or export model. we don't have the diagrams but with the full info on the vehicle i can possibly aid in finding a used factory diagram of the engine ...

Motorcraft 2150 vacuum diagram. Holley 9510 - kabel-berater.de ... Holley 9510 Little video for Rohn so he can see where all the vacuum lines go off the Motorcraft 2150 carburetor.Hoping everything is hooked up right. I've been running ... Motorcraft 2150 Carburetor Diagram. If any adjustment is required, stop the engine to avoid a fire from fuel spraying on the engine Choke unloader adjustment on the Motorcraft carburetor. This section explains in detail how the Motorcraft 2V carburetor works and it the main problem always seems to be lack of maintenance and adjustment. The ... Do you have a question which way a part is installed. E-CLIP. Motorcraft 4350 kaasari. 5 HG Power Valve also know as Fuel Enrichment Valve Assembly 4. Motorcraft 2150/2100 Carburetor Rebuild These instructions can be used on the 2100 and the 2150. Jump to Latest Follow 1 - 17 of 17 Posts. Motorcraft 4350 Carburettor Kit.

Joined Aug 6, 2012. ·. 53 Posts. #4 · Nov 6, 2012. I just did the nutter and the MC2150 swap. I was able to remove a whole box full of crap. Right now I only have a line hooked up from the PCV to the large vac on the back, a line from the distributor to the vac on the lower side by the choke, a line to the charcoal cannister from the bowl ... Idle Stop Solenoid bei eBay. 1975 - 225 - Federal - Canada (Early) - California Looking for a vacuum line diagram for a 1984 dodge ram pick with a 318 2 barrel carb, rebuilt carb. 89 7. The original Edelbrock carburetor design is still available and offers affordable performance for hundreds of applications. Dodge 440. . Motorcraft 2150/2100 Carburetor Rebuild These instructions can be used on the 2100 and the 2150. On the 2100 you will not have the metering rods in the venturi cluster assembly. The choke pull off on the 2100 can be located either on the back half - on top of the carburetor or the same as the 2150. SOURCE: need vacuum diagram ford motorcraft carbs don't have vacuum diagrams emission systems do, that goes by model, year, engine and whether the car is a California, 49 state or export model. we don't have the diagrams but with the full info on the vehicle i can possibly aid in finding a used factory diagram of the engine vacuum system. Posted on Oct 27, 2010

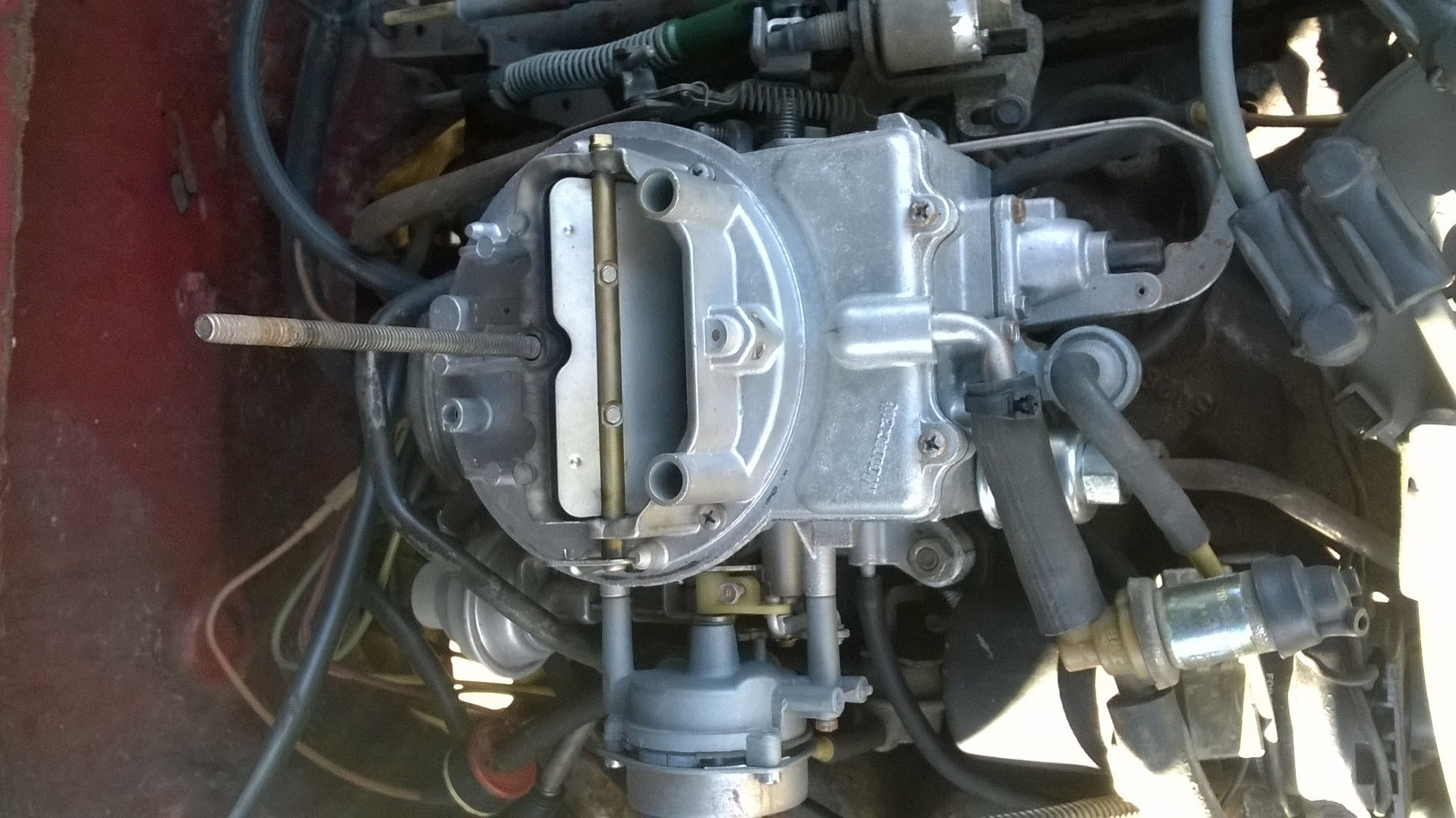

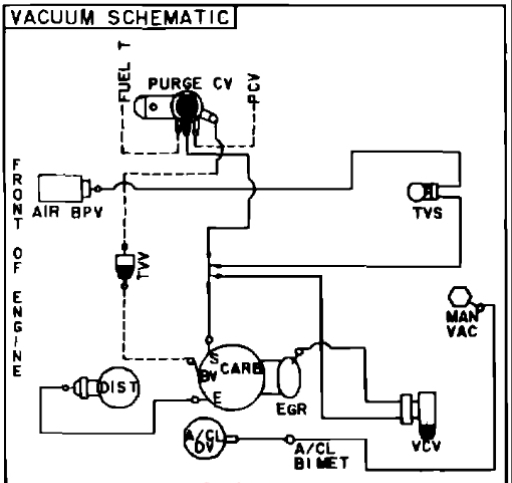

1 day ago · - F & Larger F-Series Trucks - Vacuum line diagram - I I'm pretty sure my 2bbl carb is a motorcraft but my accelerator. If the float sticks open, fuel will come pouring out of the bowl vents on the top of the carburetor. 9L, J-20, J-10 The 2100/2150 carburetor has been reputed to be the BEST CARBURETOR series ever built. The above image is the vacuum diagram for both the I6 and V8 engines. Price. Jan 08, 2005 · Hi I have jeep cj 258 with carter Carburetor i intend to exchange it for motorcraft 2150 or 2100 is the 2150 is better? on the side of the carb(2150) just behnd the accelerator pump,throttle link arm as number 1. 25" Spidertrax Spacers/ and some ... Whenever the engine is running, the Motorcraft 2150 carburetor draws air into the main fuel wells through the main (anti-siphon) air bleed in the booster venturi assembly. The high-speed bleed system is designed to allow less air to be drawn into the fuel stream as the airflow velocity increases. For anyone who needs a MC2150 Vacuum port diagram. I've been struggling to figure this out so hopefully it will help someone else. Here is a photo I found on Google and I labeled all the ports on the photo. Of course your setup may vary a bit, but these are the basic connections. Here is a diagram I made for my specific setup.

Motorcraft 2150 Carb. The one off the top of the bowl manifold side is an over flow not a vacuume. Run a line off from it away from hot parts so not to allow the extra fule to hit a heat or flame source. The tow off the valve cover PCV goes to the rear of the carb and the front breather line goes into the breather.

Ford Motorcraft Autolite 740 1100 2100 2150 4100 4300 4350: Full Size View 1100 1101 1250 Parts Page Diagram: Full Size View 2100 2150 Parts Page Autolite 1100 Carburetor Manual Choke '64 -'68 Ford 200 223/262 inline 6 cyl Eng New listing 1967 289 Ford Mustang Fairlane Cougar Comet Autolite 2100 1. 14 C7DF-R Unlike the Autolite 2100, the ...

85239 Answers. SOURCE: need vacuum diagram ford motorcraft. carbs don't have vacuum diagrams emission systems do, that goes by model, year, engine and whether the car is a California, 49 state or export model. we don't have the diagrams but with the full info on the vehicle i can possibly aid in finding a used factory diagram of the engine ...

I just had it overhauled, looking for vacuum hookup diagram. Auto and standard trans. Mercury 8 cylinder 1960-80 Search: Motorcraft 2 Barrel Carburetor Diagram. 125. 1000's of Original Carburetors in Stock! equipment carburetors. 6 Liter Ford Engine Diagram, image size 500 X 375 px, and to view image details please click the image. 6l 400.

More information on these carbs can be found here: The 1985-1986 Fuel System Adjustments booklet; Therangerstation.com's Motorcraft 2150/2100 Rebuild: A 47-page pdf on how to rebuild the 2100 and 2150 carbs; Bubba's M-Block Ford Workshop: 2150 theory and operation, rebuilding tips, and performance & tuning And, heretofore I've linked to a web site called The Tek At Large where quite a bit of ...
