In the cylindrical tubes, the friction factor is usually determined by using the Moody diagram ( Fig. 1). This diagram depicts the Reynolds number against the friction factor, and describes the ...

Colebrook's transitional roughness function using an equivalent sandgrain roughness, which takes no account of individual roughness types • Honed surfaces are inflectional not monotonic • Commercial steel pipe monotonic but not Colebrook • The limitations of the Moody Diagram were well-known (e.g., Hama), but no match for text book ...

Friction Chart or Moody Chart. The value of f, Darcy friction factor is taken from Moody Diagram. The friction factor for laminar flow is calculated by dividing 64 by the Reynold's number. Friction factor (for laminar flow) = 64 / Re ; This is for circular pipes. For Non-Circular Pipes; f=k/Re ; where k lies between 48 to 96.

How to use moody diagram

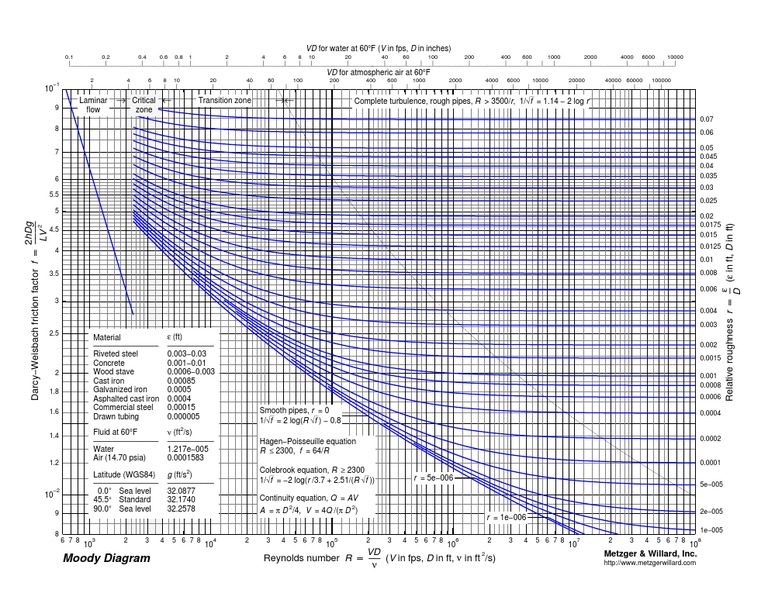

Moody chart (diagram) The Moody diagram is a chart showing the Darcy friction factor of a pipe as a function of the Reynolds number for selected roughnesses of the pipe wall. 1 Pressure loss. 1.1 Friction factor for laminar pipe flows. 1.2 Friction factor for turbulent pipe flows. 2 Moody chart.

Example: Moody Diagram. Using the Moody diagram, determine the friction factor (f D) for fluid flow in a pipe of 700mm in diameter with a Reynolds number of 50 000 000 and an absolute roughness of 0.035 mm. Solution: The relative roughness is equal to ε = 0.035 / 700 = 5 x 10-5.Using the Moody Chart, a Reynolds number of 50 000 000 intersects the curve corresponding to a relative roughness of ...

Moody Chart or Moody Diagram. In Fluid Mechanics, the Moody chart or Moody diagram is a graph which relates the Darcy-Weisbach friction factor (f D ), Reynolds number (Re), and surface roughness for fully developed flow in a circular pipe.; It can be used to predict pressure drop or flow rate down such a pipe. This diagram is used to estimate friction coefficients by Darcy-Weisbach major loss ...

How to use moody diagram.

In engineering, the Moody chart or Moody diagram (also Stanton diagram) is a graph in non-dimensional form that relates the Darcy-Weisbach friction factor f D, Reynolds number Re, and surface roughness for fully developed flow in a circular pipe. It can be used to predict pressure drop or flow rate down such a pipe.

The first guy to do this was Lewis Moody, in 1944. Moody was a "sanitation engineer", and as a result, his diagram attempts to talk about how big a pump you have to put on one end of a pipe to make water flow given roughness in the pipe. This results in the first curiosity in the Moody diagram—the Reynolds number uses

Moody's charts. 1. . A WATER RESOURCES TECHNICAL PUBLICATION ENGINEERING MONOGRAPH NO. 27 Moments and Reactionsfor Rectangular Plates UNITED STATES DEPARTMENT OF THE INTERIOR BUREAU OF RECLAMATION. 2. A WATER RESOURCES TECHNICAL PUBLICATION Engineering Monograph NO.

The Moody friction factor - λ (or f) - is used in the Darcy-Weisbach major loss equation. The coefficient can be estimated with the diagram below: If the flow is transient - 2300 < Re < 4000 - the flow varies between laminar and turbulent flow and the friction coefiicient is not possible to determine. The friction factor can usually be ...

An introduction to the famous Moody Chart! We use the Moody Chart often to estimate frictional factors. To download the notes I use for these videos, please ...

Example: Moody Diagram. Determine the friction factor (f D) for fluid flow in a pipe of 700mm in diameter that has the Reynolds number of 50 000 000 and an absolute roughness of 0.035 mm.. Solution: The relative roughness is equal to ε = 0.035 / 700 = 5 x 10-5.Using the Moody Chart, a Reynolds number of 50 000 000 intersects the curve corresponding to a relative roughness of 5 x 10-5 at a ...

The Moody chart (also known as the Moody diagram) is a graph in the non-dimensional form that relates the Darcy friction factor, Reynolds number, and the relative roughness for fully developed flow in a circular pipe. The relative roughness is equal to ε = 0.035 / 700 = 5 x 10 -5. Using the Moody Chart, a Reynolds number of 50 000 000 ...

Colebrook Equation vs. Moody Diagram. Prior to the widespread use of computers and calculators that could be used to solve the implicit Colebrook equation, an easier method of estimating the pipe friction factor was required. Lewis Moody solved the Colebrook equation to create what is known today as a Moody Diagram or Moody Chart.

The Moody diagram. The friction factor is used to calculate the pressure drop due to the flow of a fluid in a pipe. It represents the interaction in between the fluid and the pipe. There are different ways to calculate it, one can be graphical, using a Moody graph. Note that the friction factor used here is Darcy (also called Darcy-Wesibach or ...

The Weymouth equation, however, is of use in designing gas distribution systems in that there is an inherent safety in over predicting pressure drop (Maddox and Erbar, 1982). In practice, the Panhandle equations are commonly used for large-diameter, long pipelines where the Reynolds number is on the flat portion of the Moody diagram.

The moody diagram also known as the moody chart is a graph in non dimensional form that relates the darcy friction factor reynolds number and the relative roughness for fully developed flow in a circular pipe. The coefficient can be estimated with the diagram below. How to use a moody diagram 2001 f150 headlight wiring diagram 98 cherokee radio ...

Weisbach equation, it is more convenient to use equations for the Moody friction factor, f, rather than a graph like the Moody diagram. There are indeed equations available that give the relationships between Moody friction factor and Re & ε/D for four different portions of the Moody diagram. The four portions of the Moody diagram are: i ...

Moody diagram. (adapted from streeter v.l. et. al. (1985) with ...

Explains how to read a Moody chart for determining frictional factors in pipe flow problems. Made by faculty at the University of Colorado Boulder, Departmen...

Mechanical engineering : how to solve fluid mechanics problems ...

The work of Moody, and the Moody Diagram on page 6 72 of the published transactions, has become the basis for many of the calculations on friction loss in pipes, ductwork and flues. While there are modified versions of the original Moody Diagram, I will strive to use the original diagram as the basis for terminology used here.

5. moody's diagram depicting the friction factor in function of ...

Download the free Moody Chart Calculator app from Google Play here . Learn more about the Moody Chart Calculator here .

Moody chart - file exchange - matlab central

Using the moody chart a reynolds number of 50 000 000 intersects the curve corresponding to a relative roughness of 5 x 10 5 at a friction factor of 0011. Hydraulics Ce321 Lecture 4 1 Using Moody S Diagram The inside diameter of pipe d 400 2 6 388 mm. How to use moody diagram. It can be used to predict pressure drop or flow rate down such a pipe.

Friction diagrams – dr ove bratland systems pte. ltd.

I was told to create an array of roughnesses and plug them into the colebrook equation. Then, plot the moody. I'm just not sure how to go about that.

Moody chart for darcy friction factor estimate (source: moody ...

But now, thanks to the miracle of Excel, you can use your trusty old Moody Diagram AND have an instant answer at the push of a button. The Excel spreadsheet linked at the bottom of this page contains the Churchill Correlation equations for the friction factor along with a plot that has been carefully overlaid on top of a standard Moody diagram ...

Moody diagram for the darcy-weisbach friction factor | moldflow ...

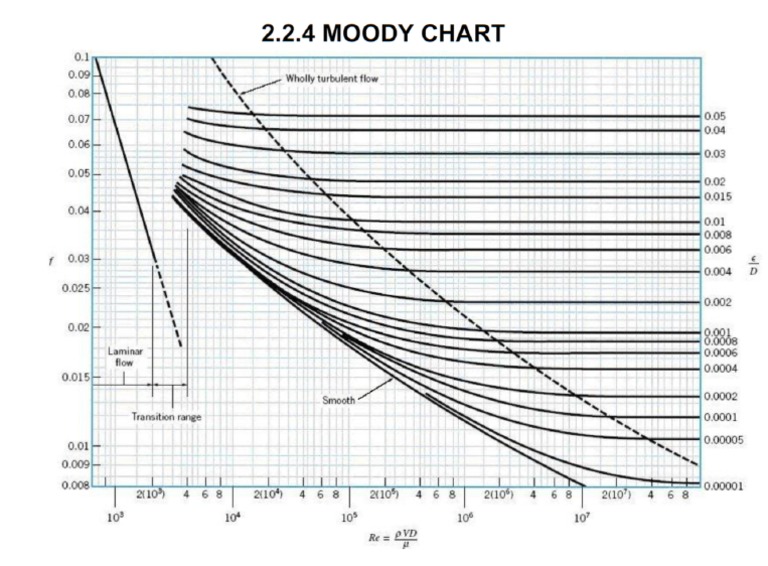

The Moody chart or Moody diagram is a graph in non-dimensional form that relates the Darcy-Weisbach friction factor f D, Reynolds number Re, and relative roughness for fully developed flow in a circular pipe. It can be used for working out pressure drop or flow rate down such a pipe. Click on Chart image to get larger Moody Chart.

File:moody chart ar.png - wikimedia commons

The algorithm includes the five correlations that generate the Moody chart. The codification of the algorithm in Visual Basic for Applications, for use in the MS Excel spreadsheet, is presented ...

Fluid mechanics: topic 8.6.2 - the moody chart

The friction factor f can be determined using the Moody diagram shown in Figure 4.2 as follows: 1. For the given flow rate, liquid properties, and pipe size, calculate the Reynolds number of flow using Equation (4.8). 2. Calculate the relative roughness (e/D) of the pipe by dividing the pipe absolute roughness by the inside diameter of the pipe.

Moody diagrams intro and example

MOODY (UNITS,PAPER,NAME) generates a four axis, publication quality Moody diagram as a PAPER size portable document format file NAME with UNITS. Default units are IMPERIAL. If units are SI, the default paper size is A4. If units are IMPERIAL, the default paper size is LETTER. The default file name is MOODY.PDF.

Moody chart calculator

Therefore, it is often effective to solve for this friction factor using the Moody Chart. Wikipedia. Procedure. As with many fluid mechanics problems, the first order of business is to determine the Reynolds number of the flow. If you don't have a velocity by which to calculate the Reynolds Number, you will need to assume either a velocity, or ...
