10.24 kW Gridtied Battery Backup Solar System with Outback Power Center and 32x Heliene 320 Panels. UNBOUND Outback Grid-Tie w/ Battery Backup System for 32 Heliene 60 Cell Modules. $ 33,178.00. Jul 07, 2018 · Wiring Diagram Pictures Detail: Name: grid tie battery backup wiring diagram – Figure 7 Detail diagram of the Radian GSLC175 AC 120 240 GSLC. File Type: JPG. Source: solarpowerworldonline.com. Size: 90.84 KB. Dimension: 600 x 408. DOWNLOAD. Wiring Diagram Images Detail:

Most grid-tied inverters on the market (anything listed to UL 1741 SA) Method #2: DC Coupling. In a DC-coupled system, the solar array is connected directly to the battery bank using a charge controller. This is how off-grid systems work, and it could be done to a grid-tied system if they are using a 600-volt string inverter. This works with the SMA Sunny Boys, many Fronius inverters, or any other 600-volt string inverter.

Grid tie battery backup wiring diagram

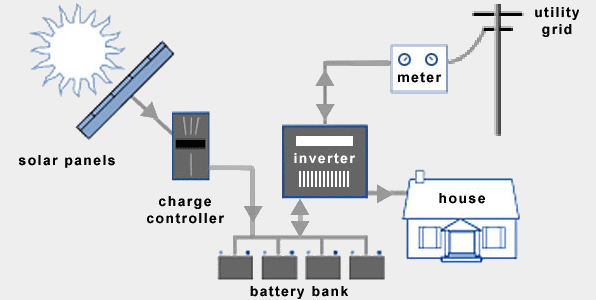

Residential and Small Grid-Tied PV Systems. Grid-tied PV systems can be set up with or without a battery backup. The simplest grid-tied PV system does not use battery backup but offers a way to supplement some fraction of the utility power. The major components of this system are the PV modules and an inverter. 1. Less expensive than off-gird solar systems. Hybrid solar systems are less expensive than off-grid solar systems. You don't really need a backup generator, and the capacity of your battery bank can be downsized. Off-peak electricity from the utility company is cheaper than diesel. 2. Grid-tied PV System With Battery Backup (example diagram) #10 AWG Cu PV Wire, and a solid #6 copper EGC extending from J-box to roof racking/modules, wiring in free-air under modules meter Soladeck J-box (4) #10 AWG THWN-2 Cu, with #10 AWG Cu EGC, ¾" EMT, wiring in attic (3) #8 AWG THWN-2 Cu, with #10 AWG Cu EGC, ¾" EMT AC disconnect located

Grid tie battery backup wiring diagram. Diy off grid solar system. Wholesale solar s electrical wiring diagrams are cad computer aided design drawings which show the electrical sequence of all equipment in a system. Assortment of off grid solar wiring diagram. It reveals the parts of the circuit as streamlined shapes and also the power and also signal links between the gadgets. A grid-tie solar kit with a battery backup is the perfect solution for many people looking to go solar. Browse our grid-tie solar battery backup kits here. Wiring Diagrams - Connecting Batteries to the StorEdge Inverter ... The checklist is suitable for a backup system with a single StorEdge Inverter, a single battery, an ... 1.9.4 Check DC wiring to the battery (see Table 1). Check the connections and verify that all are securely connected. THE OPERATION BASICS The grid tie solar panel systems with battery backup are similar to batteryless systems, except they can additionally provide electricity for critical loads in case of a utility power failure. When sun is shining, the solar panels generate power, which reduces the consumption of electricity from the grid and cuts electric bills accordingly.

Apr 11, 2018 · Grid Tie Battery Backup Wiring Diagram Collection. August 9, 2018. April 11, 2018 by headcontrolsystem. Assortment of grid tie battery backup wiring diagram. A wiring diagram is a simplified conventional pictorial depiction of an electric circuit. It reveals the components of the circuit as simplified forms, and also the power and signal links between the tools. In a FIT program either Conext™ XW Pro, XW+ or SW is added behind PV inverter to provide backup, no change to PV inverter FIT wiring is required. However backup power is limited to the capacity of the battery bank and the solar system cannot be used to charge the batteries while the grid is down. In a NET metered program the Conext™ XW Pro ... Xw grid tie wiring diagram pdf 297 kb. An electrical diagram is an invaluable resource during the permitting process and system installation. Solar power system with generator backup. Dougs new 46 kw diy grid tied pv array. The answers to these questions are complex and entirely dependent on the quality of the generators ac output. Application Note ©2014 OutBack Power Technologies, Arlington, WA 98223 Revision 2/FINAL Page 3 of 14 Adding energy storage through AC-coupling: For the owners of these more common grid-tied, grid-dependent inverters, there is a way to tie in a battery-backup inverter system using a method called AC Coupling.

May 01, 2019 · Variety of grid tie battery backup wiring diagram. A wiring diagram is a simplified standard pictorial depiction of an electrical circuit. It shows the parts of the circuit as simplified forms, as well as the power as well as signal connections in between the gadgets. A wiring diagram usually provides info about the relative placement as well as setup of devices and terminals on the devices, in order to help in structure or servicing the device. Midnite solar e panel 1 7 kw solarworld 285w kit f grid backup grid. A wiring diagram is a simplified conventional pictorial representation of an electric circuit. Micro Grid Tie Inverter Micro Inverter 1000w Circuit Diagram Buy Grid tie battery backup wiring diagram collections of outback fp1 vfxr3648a 4 4 kw solarworld solar f grid […] Aug 2, 2013 - Solar Battery Wiring Diagram Green Solar and Wind power. ... Typical PV Grid-Tie System with Battery Backup Ac Circuit, Electric Power, Solar. Assortment of grid tie battery backup wiring diagram. A wiring diagram is a simplified conventional pictorial depiction of an electric circuit. StorEdge Wiring and On Site Checklist MAN 1 StorEdge™ Wiring Guide & On Site Checklist for North America This document is a battery wiring guide and contains an on-site checklist with steps for post-installation verification of a StorEdge system, for the following batteries.Solaredge System Wiring Diagram | Wiring LibraryGrid Tie Inverter Wiring ...
