5-2-1 compressor saver installation help - iRV2 Forums 5-2-1 compressor saver installation help My Coleman Mach does not have the factory start capacitor or it would be a third one in this photo according to the attached doc's. It would be a bit smaller than the big one. 5-2-1 Compressor Saver - Which size? The compressor was having a hard time starting and the contractor came over and installed a 5-2-1 CSRU3 (for 4-5 TONS) and it worked. ... 5-2-1 Compressor Saver - Which size? Cookie Consent ... With the third wire the potential relay on the 5-2-1 can read true back-emf. This means the device can accurately determine when it should go out of ...

Universal Compressor Start Kit - Installation Instructions 10. After installing the compressor start kit, place the enclosed wiring diagram on the control panel cover next to the unit wiring diagram.2 pages

5-2-1 compressor saver wiring diagram

PDF 69-2065EFS 07 - THP9045 Wiring Module Fig. 5. Example wiring diagram for a 2H/1C heat pump application. Fig. 6. Example wiring diagram for a 3H/2C heat pump application. THX9321R SUBBASE E RYG C O 1 MATCH THE WIRES FROM THE HEAT PUMP TO THE AIR HANDLER AS NORMAL. 1 AIR HANDLER Rc YG CW-O/B WIRESAVER M31303A O/B W AUX/E W2 YY Y2 Y2 GG L NOT USED NOT USED NOT USED K C Rc R U2 U2 U2 ... 5-2-1 "Compressor Saver" Hard Start Kit Installation How ... how to install a hardstart kit for an air conditioner compressor › hvacr › 5/2/1-compressor-saver5-2-1 Compressor Saver (Hard Start Kit) for A/C Technicians The 5-2-1 Compressor Saver® protects these components by significantly reducing the amount of time it takes for your compressor to start - in some cases up to 50%. This means your air conditioner and compressor will bear - the stress, strain and heat each and every time it starts. Considering that your air conditioner may start up more ...

5-2-1 compressor saver wiring diagram. 5-2-1 Compressor Saver: Benefits Of Adding A Hard Start Kit Sep 22, 2019 - Do Not Try This At Home! Installing these parts requires training, skill, special tools and knowledge of both electrical and HVAC components.This is a re-edi... Importance of Hard Start Kits - Behler-Young The 5-2-1 Compressor Saver would be a better choice for installation on new compressors. The 5-2-1 has a capacitor and potential relay that is very similar to the OEM start kit but with a universal relay and capacitor. Like the OEM relay, the 5-2-1 will drop out of the start circuit as the compressor speeds up so it is much better than the PTC. Amazon.com: CPS 5-2-1 CSRU1 Compressor Saver for 1 to 3 ... The 5-2-1 Compressor Saver significantly reduces the time the compressor draws high amperage at start-up by combining a powerful multi-layer starting capacitor with a smart switch to safely give the compressor the burst it needs to start up quickly and reliably, while drawing less power. Less power means lower energy bills, too. 5-2-1 Compressor Saver Csru1 Hard Start Kit Potential ... 5-2-1 Compressor Saver CSR U1 Hard Start Capacitor 1-2-3 tons CSRU1. I replaced an old bad compressor saver with this one, and it fit in just like the old one did. Works great, and does what it's supposed to do-gives the compressor an extra boost, so it doesn't lug down when starting.

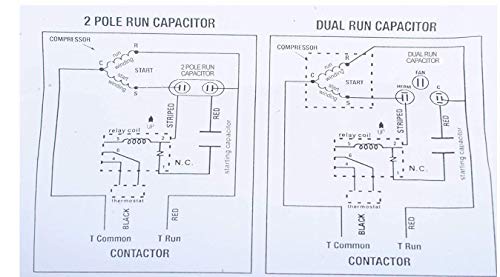

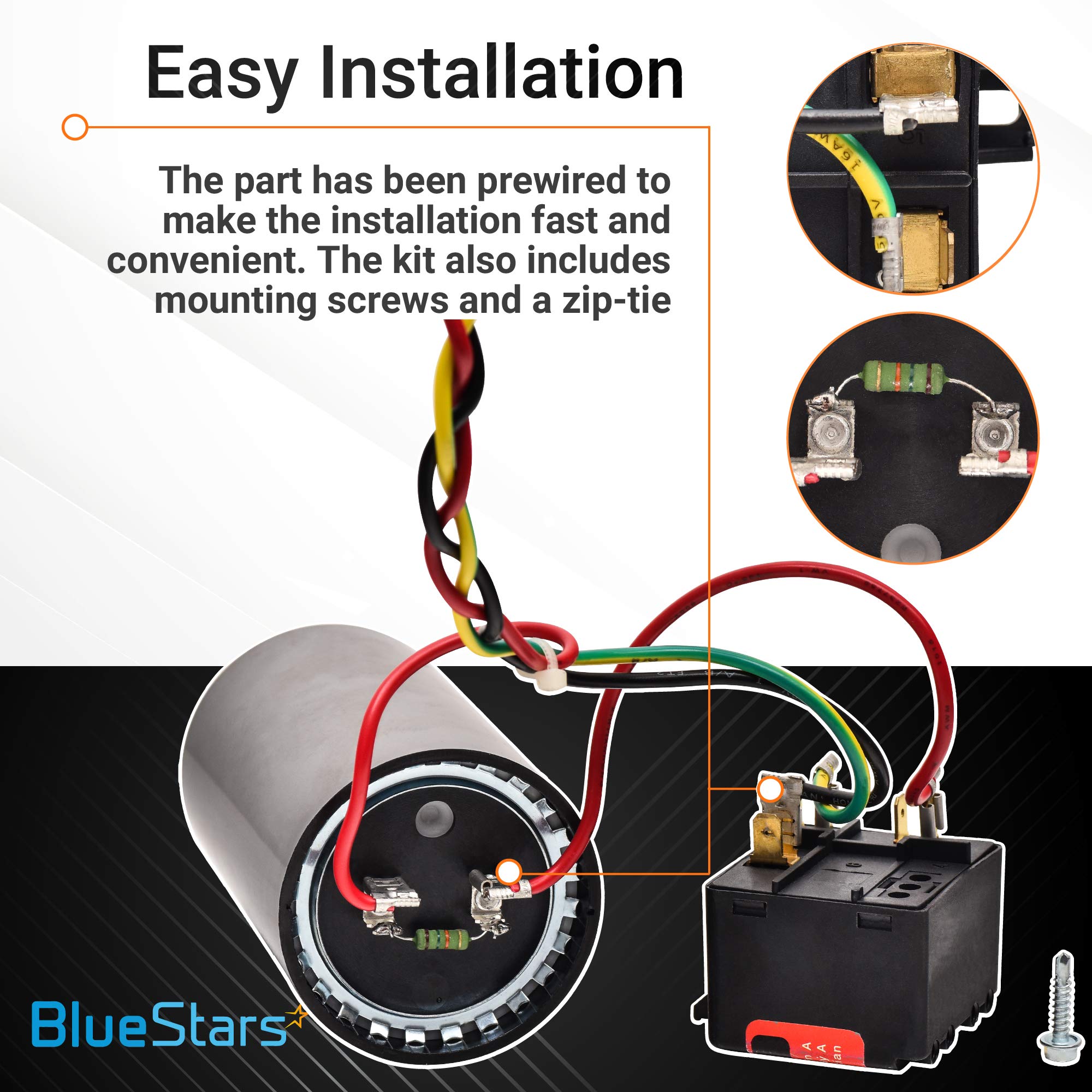

Compressor Start Relay Wiring Diagram - Studying Diagrams 5 2 1 Compressor Saver Wiring Diagram. Compressor start relay wiring diagram. It is very easy to miswire a compressor but the results can be deadly. It is very easy to miswire a compressor but the results can be deadly. Air Conditioning and Cooling Systems - Spp6 - Hi I installed a new capacitor The technician at supco told me it. These are ... Car Radio Wiring Diagram - Wirings Diagram Car Radio Wiring Diagram - auto radio wiring diagrams, car radio wiring diagram, car radio wiring diagram needs, Every electrical structure is made up of various diverse pieces. Each part ought to be placed and connected with other parts in specific way. If not, the structure will not function as it should be. CSRU2 | 5-2-1 Compressor Saver for A/C units | CPS Products The 5-2-1® Compressor Saver ® has been pre-wired for your convenience. There are only 3 color-coded wires which need to be connected. The Black wire will be connected to the Common side of the compressor. The Striped wire will be connected to the Start winding of the compressor and the Red wire will be connected to the Run winding of the ... 2020cadillac.com › 5/2/1-compressor-saver-wiring5-2-1 Compressor Saver Wiring Diagram - Cadician's Blog Jan 14, 2022 · 5-2-1 A/c Compressor Saver Install – Youtube – 5-2-1 Compressor Saver Wiring Diagram. Wiring Diagram will come with numerous easy to stick to Wiring Diagram Directions. It’s intended to assist each of the average person in developing a suitable program. These guidelines will be easy to comprehend and apply.

CPS® 5-2-1 Compressor Saver 3-Wire Hard Start Kit ... - Insco CPS® 5-2-1 Compressor Saver 3-Wire Hard Start Kit, 208/240 VAC, 35 amp, 1 PH Phase Login for Price Qty Add To Cart Favorite List Add / Remove CPN Brand Name: CPS Products IPN: 3000600 MPN: CSRU1 UPC: 66255140722 CPN: ... Home Ac Compressor Capacitor Wiring - Wiring Diagram Line Home Ac Compressor Capacitor Wiring Wiring Diagram Line Wiring Diagram. Wiring Diagram Line We are make source the schematics, wiring diagrams and technical photos ... preventative maintenance should replace smw refrigeration llc wire quality 101 are main reason failure c heat pumps 5 2 1 saver technicians condenser problems service first ... PDF Old Wiring? TV Screen Flip Flop? Circuit Breakers Trip ... A 5-2-1® COMPRESSOR SAVER® significantly reduces the amount of time your compressor is on start-up overload. Most top-of-the-line A/C units come from the factory with5-2-1® technology built in. Now you can have a 5-2-1® installed in your A/C unit by a professional. A/C Hard Start Kit: A $1,600 Per Hour ... - TerryCaliendo.com Compressor Saver Hard Start Capacitor Model CSR U3 Installation Cost. I asked him how much it would cost. He said $450 per air conditioner and followed up with "its well worth it as it will save you thousands in repair costs as the unit ages". Sales Pitch. As soon as I heard that line, I knew I was being sold something.
